Robotic Arm Automatic Welding Machine (Six-Axis Welding Robot Workstation)
Automatic Welding Robot with 6-Axis Jointed Arm
The robotic welding system is centered around a **6-axis articulated robot**, paired with a digital welding machine, wire feed unit, workholding rotator, and control system to form an automated welding workstation. Through teach pendant programming, it automatically follows preset trajectories to complete welding tasks such as MIG gas-shielded welding, TIG argon arc welding, spot welding, and laser welding. It is the mainstream automated upgrade equipment for metal fabrication and structural component factories equipped with laser cutting machines.
## ✅ Core Components
1. **6-Axis Welding Robot**
Standard 6 degrees of freedom, flexible wrist capable of multi-angle adjustment of the welding torch position to reach complex weld seams and hard-to-reach areas; conventional payload 6–10kg, arm span 1400–2000mm; repeat positioning accuracy ±0.05mm. Supports multiple installation methods including floor mounting and inverted mounting.
2. **Welding Power Supply + Wire Feeder + Torch**
Digital pulsed welding machine with low spatter; built-in welding process library, capable of connecting with the robot to adjust current, voltage, and wire feed speed in real time; optional water-cooled torch, suitable for long-duration continuous operation.
3. **Rotator (Single-axis / Dual-axis / Dual-position)**
Linked with the robot's external axes, rotates the workpiece to a flat welding position, reducing welding difficulty; **dual-position rotator** is most commonly used: one side welding while the other side allows manual loading/unloading, maximizing efficiency without downtime.
4. **Control System + Teach Pendant**
Handheld teach pendant for drag-and-drop teaching to set trajectories, start/end welding, swing width, and welding speed; stores multiple product programs for quick recall when switching products; supports integration with MES.
5. **Optional Modules (Highly selected by international trade customers)**
- Laser Seam Tracking: Automatically compensates for weld offset when workpieces have assembly errors or deformation, offering strong tolerance
- Gun Cleaning & Wire Cutting Station: Automatically cleans nozzles of spatter, reducing downtime
- Fume Extraction System, Safety Fence, Safety Light Barrier
- Collaborative Robot Arm: No fence required for human-robot collaboration
## 📌 Mainstream Welding Processes & Material Types
- MIG/MAG Gas Shielded Welding (Most Common: Carbon Steel, Stainless Steel)
- TIG Argon Arc Welding (Thin stainless steel, aluminum, precision parts)
- Spot Welding, Pulsed Welding, Laser Composite Welding
- Compatible Materials: Carbon steel, stainless steel, aluminum plate, galvanized plate, alloy steel, and other metal components
## ✨ Core Advantages
1. **Consistent Weld Seam Quality**: Eliminates manual skill variations, ensuring uniform weld bead formation, reducing porosity, slag inclusion, and deformation, significantly lowering rework rates;
2. **Long-duration Continuous Production**: Supports 24/7 non-stop operation, with arc-on time far exceeding that of manual welding;
3. **Reduced Dependency on Welders**: Difficulty in hiring skilled welders; processes are固化 in programs, requiring only basic operators for workpiece clamping;
4. **Improved Working Environment**: Isolates arc light, fumes, and hot spatter, protecting workers;
5. **High Flexibility**: One workstation can produce multiple parts by changing fixtures and calling up programs, suitable for multi-variety batch orders;

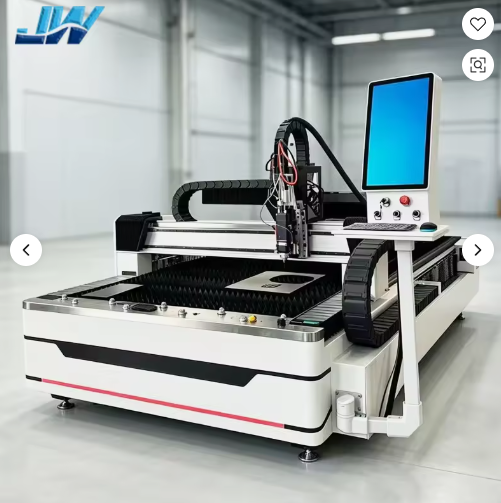

6. **Perfect Compatibility with 1530 Laser Cutting Machine**: Laser cutting + robotic welding integrates the sheet metal automation production line.
## 🛠️ Applicable Industries
Welding for enclosures/cabinets, construction machinery, agricultural equipment parts, vehicle frames, shelves, ironwork, pressure vessels, sanitation equipment, elevator components, new energy supports, hardware furniture, and other structural component welding.
